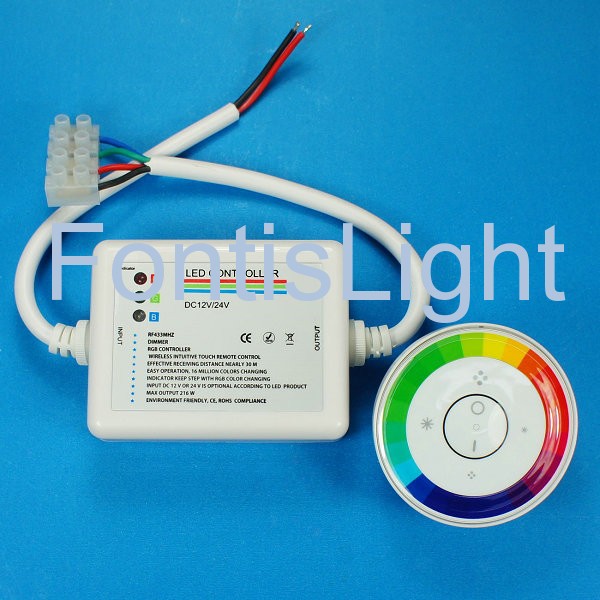

Rainbow Touch RGB Controller
Model：FL-CW-R
Size：86.5x55.6x22.8mm
Power：216W
Rainbow Touch RGB Controller with -20 to 60°C Working Temperature
Size：86.5x55.6x22.8mm
Power：216W
Rainbow Touch RGB Controller with -20 to 60°C Working Temperature
Consult us
Introduction
-
Technical parameters:
- Working temperature: -20 to 60℃
- Supply voltage: 12 and 24V DC (optional) (for orders specify voltage)
- Output: 3 channels
- Connecting mode: common anode
- Transmission/receiving frequency: 433.92MHz
- External dimensions (L x W x H): 86.5 x 55.6 x 22.8mm
- Packing size (L x W x H): 88 x 88 x 156mm
- Net weight: 170g
- Gross weight: 215g
- Output current: <6A (each channel)
- Output power: <216W
-
Presentation mode:
- Gradual change model
- Touch on button again under monochrome mode condition, RGB strip will be changed into gradual
- change mode
- Increasing color button will speed up the color change, decreasing color button will slowdown
- Hopping mode: under gradual change mode condition
- Touch on button
- RGB strip will be changed into hopping mode
- Increasing color button will speed up the hopping, decreasing color button will slowdown
- Under gradual change or hopping mode, touching on switch will change one to the other
- Close the RGB strip and restart It if you want to enter monochrome mode
- Pay attention: the change of above two presentation mode need 4 seconds
- Input voltage of remote control must be the same as RGB strips
- Match the color of output wiring when connecting
- When the color doesn't match, for example, it displays blue when touch green, or displays
- green
- When touching blue, please check whether the wiring is correct, in this case, exchange each other
