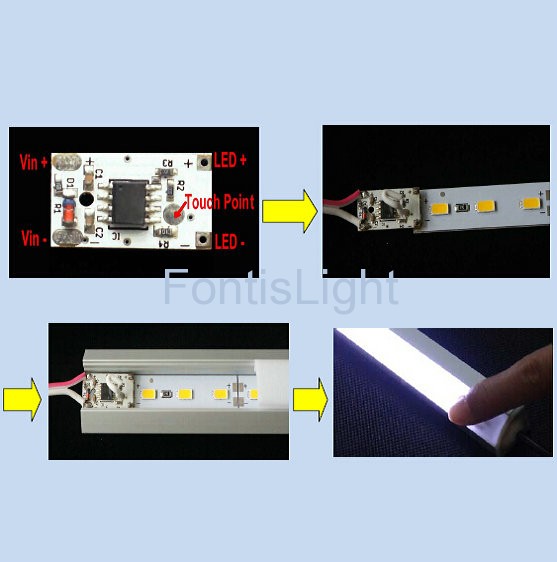

Touch Dimmable led Driver

Features:

1 . Mini size: L18.5mm x W11mm x H5mm

2. INPUT VOLTAGE：DC 5-24V

3. MAX OUTPUT VOLTAGE : DC 5-24V

4. MAX Output CURRENT:  4A

5. Low Standby Current Consumption:

a. In 12V: 6mA    b. In 24V: 12mA

6. Touch signal can penetrate different medium (such as glass, acrylic, plastic, ceramic), safety to use

7. Wide range Stepless dimming

8. With memory of dimming

9. low EMI

10. Used Power MOSFET 24 AMPERES, 60 VOLTS, RDS(on) = =0.036 Ώ (Typ)

Applied to Desk lamps , LED lights or crafts



Control Mode:

Initial supply, the light is Off.



1) Click touch (time<550ms)= ON/OFF Switch

First Click touch, Light On

Second Click touch, Light Off

Initial brightness is Maximum brightness.



2) Press touch (time>550ms) = adjustable of brightness (increasing/decreasing brightness)

First press, brightness is increasing; Release, brightness remains same level (if pressing time>3S, brightness would reach to its Max value and keep this intensity)

Second press, brightness is decreasing; release, brightness remains same level (if pressing time>3S, brightness would reach to its Min value and keep this intensity)

3) Click and Press could be used in any time, their functions won’t be interference or restrictions
