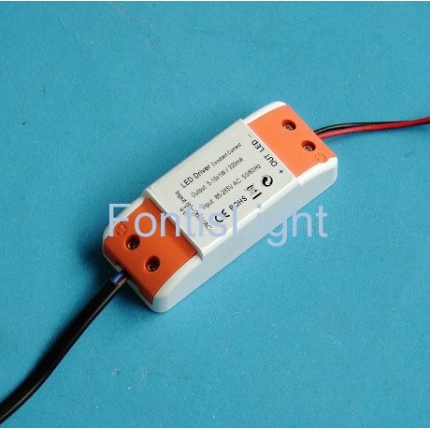

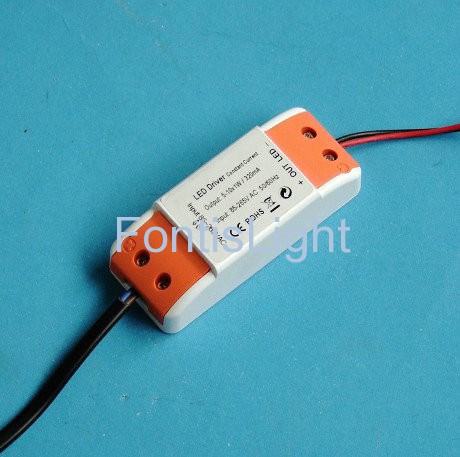

(6-10)x1W LED Driver
Model: FL-PN-DR(6-10)x1W
Size:72x29x21mm
Power:(6-10)x1W
6-10W LED driver, Input 85-265V AC, Constant 350mA, high PF
Size:72x29x21mm
Power:(6-10)x1W
6-10W LED driver, Input 85-265V AC, Constant 350mA, high PF
Consult us
Introduction
-
Descriptions:
- External constant current power supply of compact conformation, high-power factor, high--efficiency and universal AC input
- It is brand new design of topological circuit and the use of components with excellent performance enable this power supply to possess the characteristics of low-noise, energy--saving, eco-friendly and long lifespan
-
Product parameters:
- Power: (6-10)x 1W
- Input voltage: 85 to 265V AC
- Frequency: 50/60Hz
- Output current: 320mA±20mA (value for the standard model)
- Output power: 11W (maximum)
- Conversion efficiency: 90% (typical value)
- Power factor: ≥0.95/110, 230V AC
- Dielectric strength: 3.75kV AC, 5mA, 60 seconds
- Protective function: short-circuit protection and open circuit protection and more
- Applications: apply to lighting devices requiring an external power supply, it can drive 6~10pcs x 1W high-power LED lamps
- Repair rate: <0.3%
