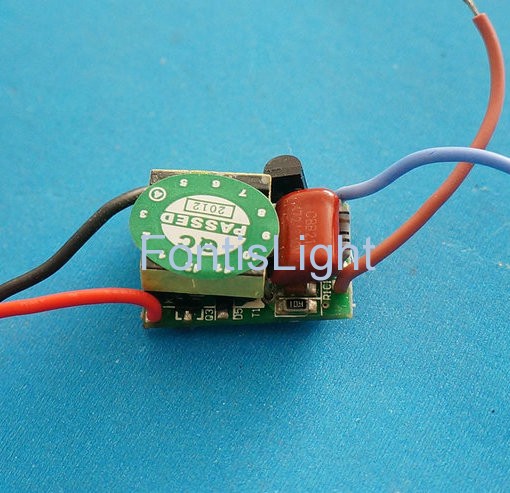

Mini 3W Dimmable LED Driver
Model:FL-DR3W-DIM
Size:25x16x13mm
Power:3W
3W Triac Dimmable LED Driver, Input 230V AC, Constant 350mA
Size:25x16x13mm
Power:3W
3W Triac Dimmable LED Driver, Input 230V AC, Constant 350mA
Consult us
Introduction
Product parameters:
- Power: 3x 1W
- Dimmable range: 10%-100%
- Input voltage: 230V AC
- Frequency: 50/60Hz
- Output current: 320mA±20mA (value for the standard model)
- Output power: 3.5W (maximum)
- Conversion efficiency: 80% (typical value)
- Power factor: ≥0.85/110, 230V AC
- Dielectric strength: 3.75kV AC, 5mA, 60 seconds
- Protective function: short-circuit protection and open circuit protection and more
- Applications: apply to lighting devices requiring an external power supply, it can drive 3 x 1W high-power LED lamps
- Repair rate: <0.3%
