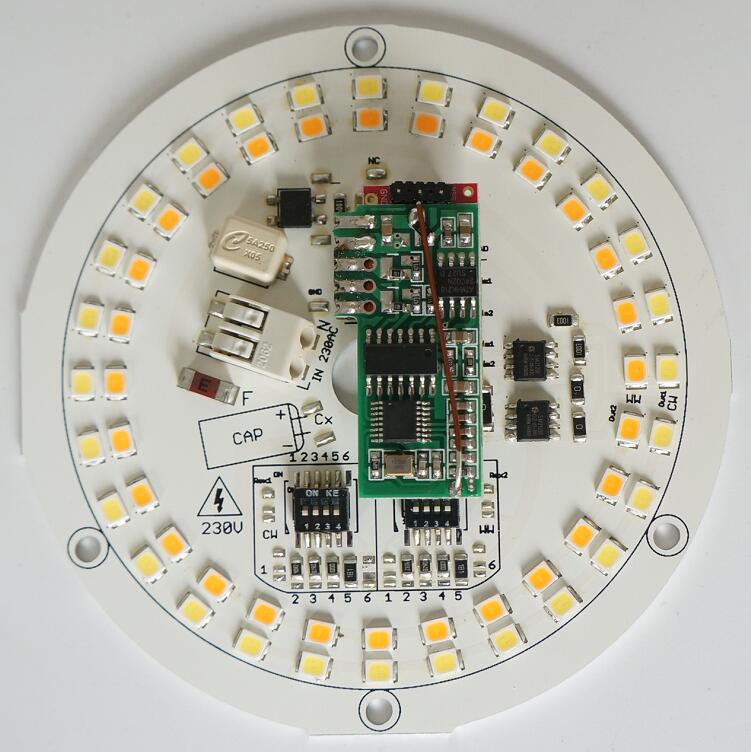

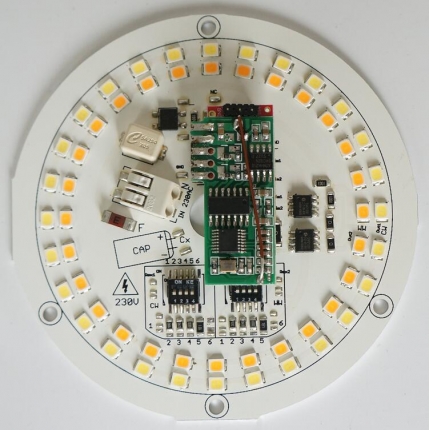

CCT adjustable led module 230V with controller

CCT adjustable led module 230V with Controller

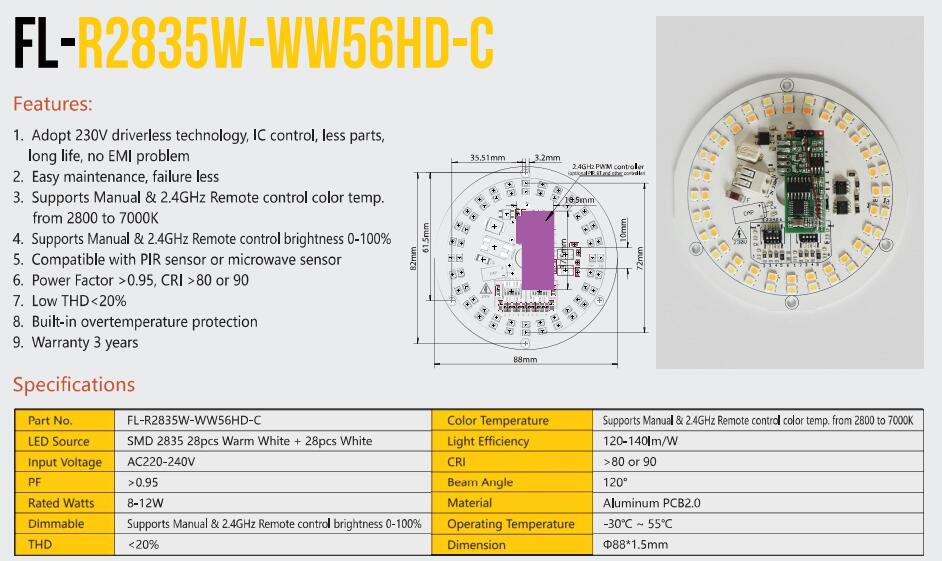

Features:
1 . 88mm 230V High voltage LED Module with CCT adjustable
2. PCB THICKNESS: 1.5mm, Diameter: 88mm
3. Working Voltage: 230V AC (220-240), possible 110VAC
4. LED Efficiency: 120-130 lm/W (or adapted to customer's request)
5. LED quantity: 2*28pcs 0.5W 2835 SMD LED
6. Unique possibility of adjust the brightness and CCT in 16 steps/color (This gives you total 256 ability to adjust)
7. Unique ability to connect various sensors and controllers that use PWM or 0-10V control (BT, 2.4GHz, PIR and other)
8. Adjustable CCT (°K): 2800-6500°K in multisteps
9. Adjustable Luminous Flux(lm): 2*0-1200lm, total max 2400lm (or adapted to customer's request)
10. LED View Angle(2θ1/2): 120 degree
11. Adjustable Output Power: 2*0-12W, total max 24W (or adapted to customer's request)
12. Supporting SCR (Triac) dimming

BENEFITS:
Easy for installation
Excellent EMC performance
No driver design, easy for producing and maintenance, save costs
No driver design easily pass various testing and certification
Supports Manual & 2.4GHz Remote control color temp. from 2800-7000K
Use constant current IC instead of led driver, less components but more stable solution

Applications:
Unique adjustment the brightness and CCT it's ideal light source for flat ceiling lamp, downlight lamp, led
pendent lights, etc
