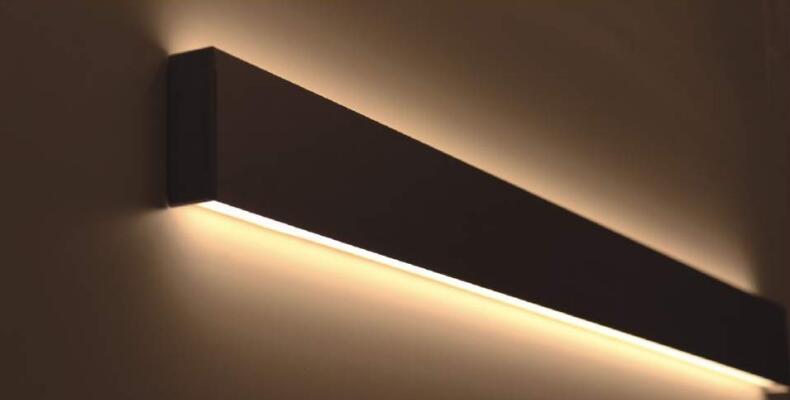

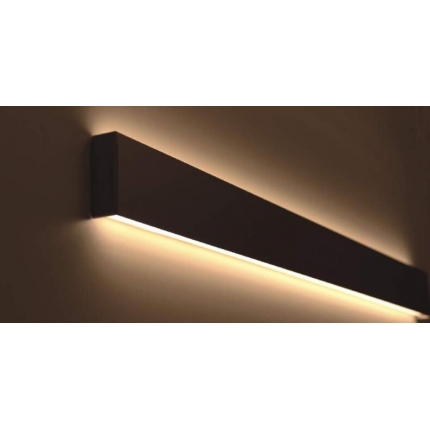

Wall Mounted by clip Led wall up and down Linear Light ALP049-S
Model:FL049S-006W25H
Size:L600*W42.3*H85mm
Power:25W
Beam Angle:100deg
Led wall up and down Linear Light ALP049-S
Size:L600*W42.3*H85mm
Power:25W
Beam Angle:100deg
Led wall up and down Linear Light ALP049-S
Consult us
Introduction
Led wall up and down Linear Light ALP049-S
Specifications:
LED quantity: 144pcs 2835 SMD leds
Power: 20W
Input voltage: 85-265 AC
Luminous flux: Cool white: 2200lm, Warm white: 2000lm
Beam angle: 180º
External dimension: L600mm*W85mm*H42.3mm
Housing material: aluminum alloy, could be painted in different color
Easy and safe to install, Excellent thermal diffusivity
Lighting both two sides
IP rate: IP54/class
Color temperatures:
Warm white: 2,800 to 3,200K
Neutral white: 4,000 to 4,500K
Cool white: 6,000 to 7,000K
CRI: ≥80Ra
Operating temperature: -30 to 45°C
Operating humidity: 10 to 90% RH
Average lifespan: 50,000 hours
Warranty: 3 years
Applications:
Widely used in commmercial and residential application, for instance: villa, hotel, office, bar shelves,
cupboard, museum, gallery, corridor, ceiling, hall, shop, market, stadium, home, school and so on..
Features:
1. Material: The lamp body is made of pure aluminum and is molded through extrusion,
together with high transmittance PC over, nice designed and ideal for interior lighting
2. Light source: 144pcs 2835 LED
3. LED driver: high quality and high PF driver (meanwell driver is available as well)
4. Lighting Way: 100% downlight.
5. Illumination mode: Direct light emission.
6. Application: Mainly used for offices,meeting rooms, hotels, schools and showrooms, etc.
7. Certification: CE & RoHS
8. 3 years warranty
Specifications
| Model | FL049S-006W25H |
|---|---|
| Certification | CE&ROHS |
| Color | Anodized silver/matt white/matt black |
| Material | Alu6063-T5/PC Opal-Diffuser/End cap |
| Installation | Wall Mounted by clip |
